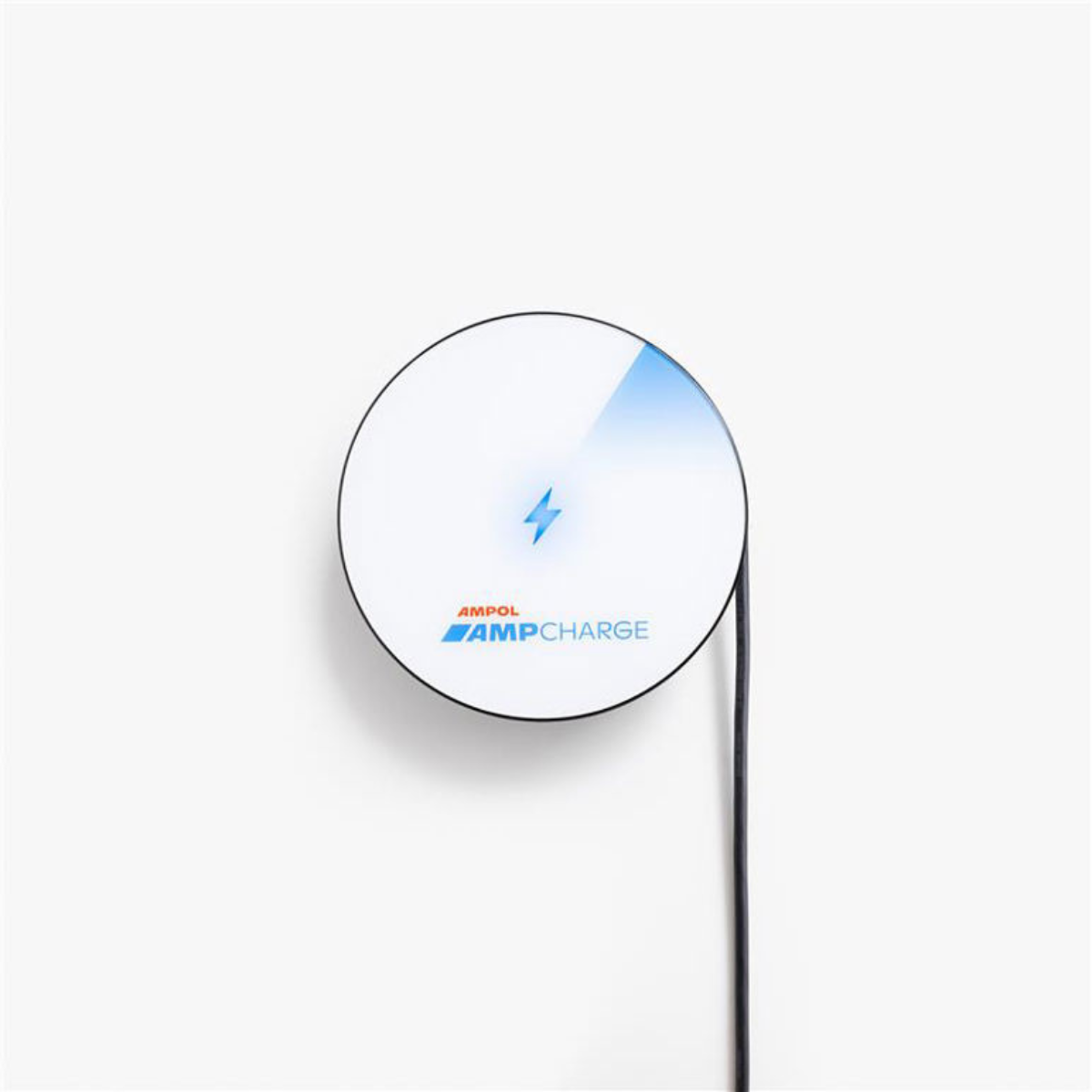

AmpCharge EVOS Bolt 7kW Home EV Charger – Smart, Reliable, WiFi‑Connected
SKU code: SB-07-AM-NO-CSAU-01-AO
-
Delivers ~7.4 kW AC charging (single‑phase) — about 3× faster than a standard 10 A domestic plug.
-
Comes with a Type‑2 tethered 5 m cable, compatible with most modern EVs in Australia.
-
Wi‑Fi enabled, giving you access to the AmpCharge Driver Portal, firmware updates, scheduling & monitoring.
-
Safety built‑in: includes 6 mA DC leakage detection, requires Type A RCD + MCB upstream protection.
-
IP65 ingress protection and wide operating temperature range (−30 °C to +50 °C) make it suitable for harsh Australian outdoor or semi‑outdoor locations.
-
Sleek, compact design (360 mm × 83 mm), lightweight (~3.5 kg), wall‑mountable.
-
2‑year warranty included.
Product specifications
| Storage Temperature | |
|---|---|
| Charging power (kW) | 7.4kW |
| Connector Type | Type 2 |
| Cable Length | 5m |
| Circuit breaker | Single Phase |
| Maximum Input Current | 32 Amps |
| Input Voltage | 230 V AC ± 10% (1P) |
| Wireless Communications | Wi-Fi enabled (for access to AmpCharge Driver Portal) |
| Product Warranty | 2 Years |
| Operating Temperature | From -30°C to 50°C |
| Relative Humidity | 0 - 95% |
| Ingress Protection | IP65 |
| Size (WxD) | (W) 360 x (D) 83mm |
| Weight | 3.5kg |
| Communication Protocol | OCPP 1.6j |
| Protection | Built-in 6mA DC RCD (Only Type A RCD + MCB required) |
| Standards | IEC 61851-1, IEC 61851-21-2 EU RoHS Directive Compliant |
| Mounting Options | Wall |
| User Interface | LED |
| SKU | SB-07-AM-NO-CSAU-01-AO |
| Brand | AmpCharge |
| Weight | 3.5000kg |
